Blind Spot Detection System 77GHz Radar 50M Range Car Safety Sensor BSD Lane Change Warning

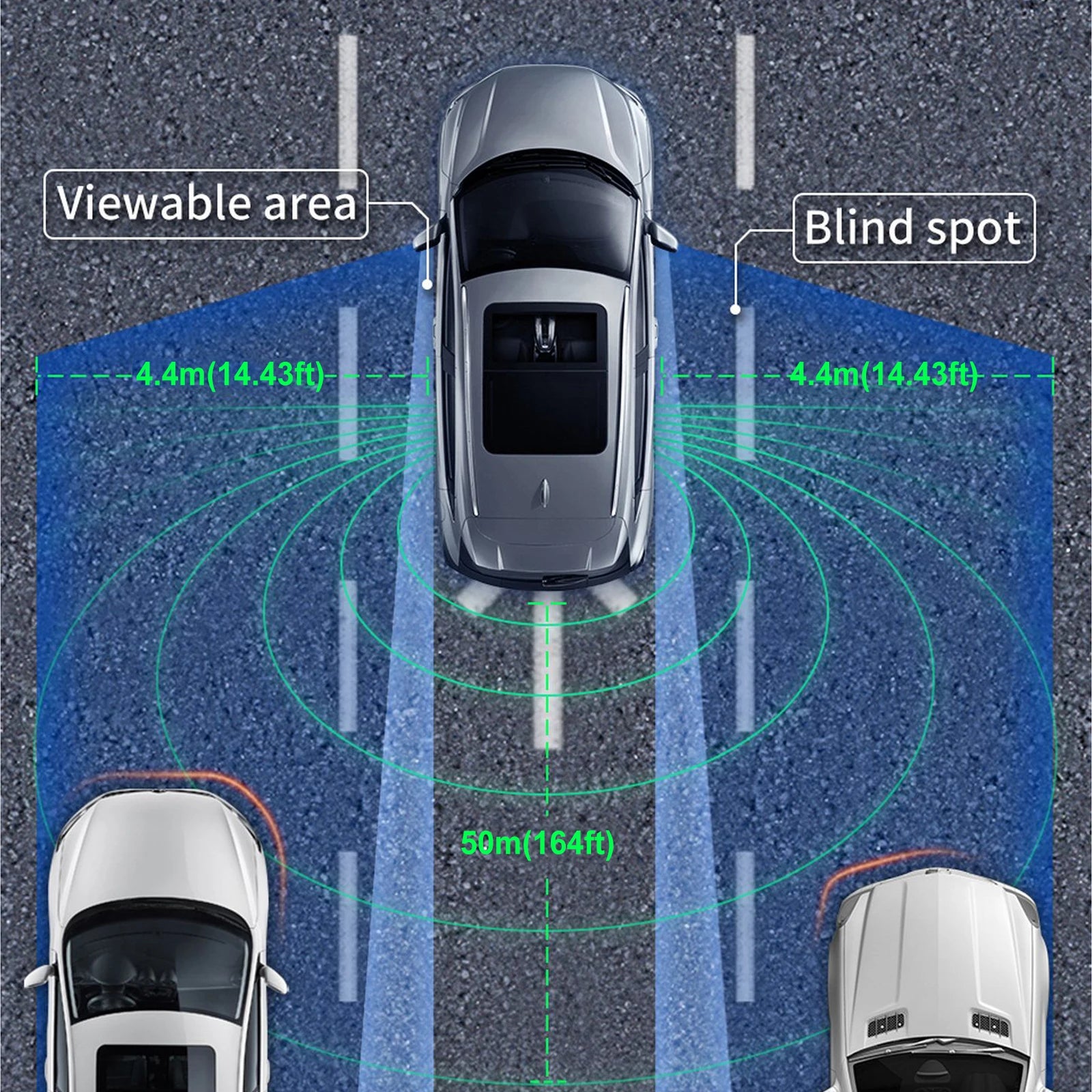

Enhance driving safety with this 77GHz millimeter wave radar system. Detect vehicles in your blind spots up to 50M (164ft) and get early warnings for lane changes, parallel approach, and rear collisions. Works in all weather conditions including fog, smoke, and dust. Features dual-level alarms with visual and buzzer alerts for maximum protection.

Easy installation with included reminder lights, power cords, and mounting accessories. Ideal for safer driving on highways and city roads.

Specifications:

• Operating Voltage: 9V–32V

• Frequency Band: 77–79GHz

• Working Temperature: -25℃ to +75℃ (-13℉ to 167℉)

• Power Consumption: <3W

• Waterproof Grade: IP67

• Detection Range: 0–50M (0–164ft)

• Distance Resolution: 0.2M (0.656ft)

• Ranging Accuracy: <0.1M (0.328ft)

• Horizontal Angle Range: 150°

• Pitch Angle Range: ±10°

• Velocity Measurement Accuracy: 0.1m/s (0.328ft/s)

Key Features:

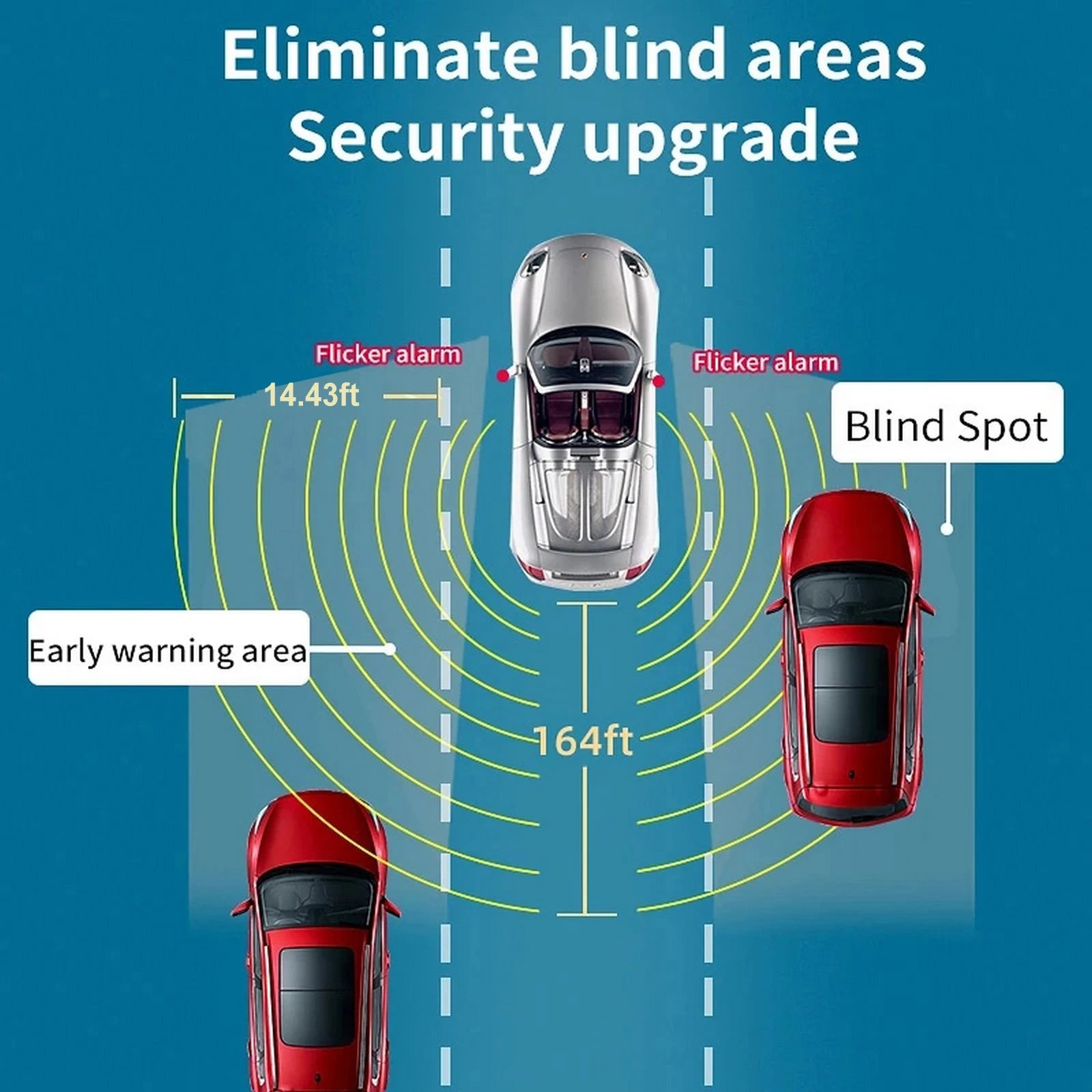

• Blind Spot Detection (BSD) with first and second-level warnings

• Lane Change Assist (LCA) for parallel lane safety

• Rear Collision Warning (RCW) up to 50M behind vehicle

• Dual alarm system: indicator lights + buzzer

• All-weather operation: fog, smoke, and dust resistant

• Supports up to 64 moving targets simultaneously

• Compact radar module with included mounting accessories

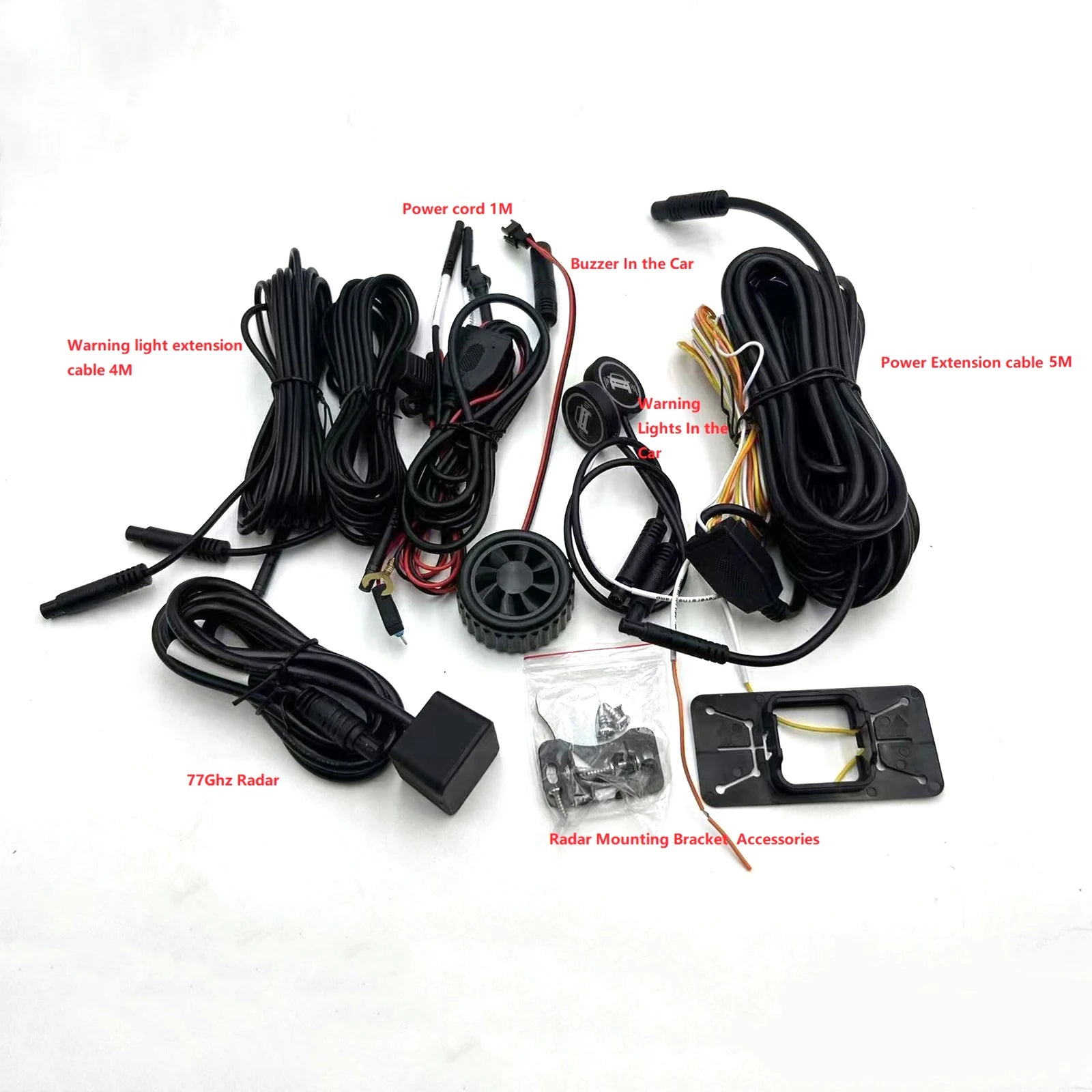

Packing List:

• 2x Reminder Light Extension Cable (4m)

• 1x Power Cord (1m)

• 1x In-Car Buzzer

• 2x In-Car Warning Lights

• 1x Power Extension Cord (5m)

• 1x 77GHz Millimeter Wave Radar

• 1x Radar Mounting Bracket Set

• 1x User Manual
